Collapsed Drain Manchester: Causes, Repair, and Costs

A collapsed drain is one of the most serious drainage problems a property owner can face. The pipe has caved in, partially or completely blocking the flow of sewage. If the collapse is near the house, sewage may back up into the property. If it is further away, you may notice slow drainage, recurring blockages, or problems only appearing after heavy rain.

This guide explains what causes drain collapse in Manchester, what warning signs indicate a collapse might be developing, and what your repair options are.

What Is a Collapsed Drain?

A collapsed drain is one where the pipe wall has caved inward, partially or completely blocking the internal bore. This can happen suddenly (a section of pipe suddenly gives way under the weight of soil) or gradually (a crack or deformation progresses until the pipe eventually collapses).

A partial collapse might reduce the bore of the pipe by 50–80%, leaving a narrow channel. A complete collapse is a full blockage with no passage of water.

What Causes Drains to Collapse in Manchester?

Ground Movement and Settlement

Manchester’s clay soil is relatively stable, but ground movement does occur. Heavy rain can soften clay, causing settlement. Drought can cause clay to shrink and crack, then settle when moisture returns. Older properties, particularly those with stone or brick foundations, can experience gradual settlement over decades.

This ground movement puts pressure on buried drains. A pipe that has been in the ground for 100+ years can be stressed by ongoing settlement. If the pipe is also old (clay, pitch fibre) and already weakened, the result can be collapse.

External Loads

Heavy structures or vehicles placed above drains can cause collapse. Examples in Manchester include:

• A heavy extension built over an existing drain without proper protection.
• A new driveway or patio poured over a drain without proper bedding or support.
• Repeated heavy vehicles parked above a drain (a concrete driveway with poor bedding is vulnerable).

If a drain was originally bedded properly in sand and supported by the soil, adding weight from above can exceed its load-bearing capacity.

Age and Material Deterioration

Different pipe materials fail differently:

• Clay pipes (common in Victorian properties) are durable but brittle. After 120+ years, they can fracture from minor ground movement. Once fractured, they weaken and can eventually collapse.
• Pitch fibre (1950s–1980s) softens and deforms over time. Advanced deformation can lead to collapse.
• Brick barrel drains (some Victorian properties) are large brick structures. After 100+ years, the mortar deteriorates and bricks can shift, reducing the bore until collapse occurs.
• Concrete pipes are generally durable but can crack. Cracked concrete can be stressed by ground movement and collapse.

Root Ingress and Blockage

A dense root mass in a pipe can block flow and back up water. If this backup is severe enough, it can increase pressure in the pipe upstream, potentially rupturing weak sections. While this is more likely to cause a rupture than a collapse, in combination with other weaknesses (cracks, age) it can contribute.

Combined Sewer Surcharging

In older Manchester areas with combined sewers (where foul and surface water share the same pipes), heavy rainfall can cause the system to become overloaded. This surcharging increases pressure in the pipes. A weak or damaged pipe under this added pressure is more likely to collapse.

What Are the Warning Signs of a Collapsed Drain?

Before a complete collapse occurs, you may notice these signs:

Recurring Blockages

If a section of pipe is collapsing, it narrows the bore and traps debris more easily. You experience blockages more frequently than before, requiring repeated drain clearance.

Slow Drainage

Water drains slowly from toilets, sinks, or showers, particularly at night when the system is quiet and there is time for water to back up.

Gurgling and Vibrations

You hear gurgling sounds when water drains (air being drawn into the pipe as water backs up behind the blockage). Occasionally, vibration or vibration from the water trying to force past the obstruction.

Damp in the Garden

If the drain is leaking upstream of the collapse, sewage may escape into the ground near the pipe run. You notice damp patches in the garden, or areas of poor grass growth directly above the drain.

Subsidence Cracks

If a collapsed drain is near the foundation, the loss of structural integrity and the escape of water can trigger ground settlement and subsidence cracks in the building.

How Does a CCTV Survey Detect a Collapsed Drain?

A CCTV drain survey will show a collapsed section clearly. The camera footage shows:

• The partial or complete blockage — the collapsed pipe wall is visible on screen.
• The extent of the collapse — whether it is a small section (0.5 metres) or a long collapsed run (several metres).
• Whether the collapse is total or partial — whether there is any remaining passage.
• The condition of the pipe either side of the collapse — sometimes a collapse is isolated; sometimes the whole pipe is weakened.

The survey report will grade the collapse as Grade 4 or Grade 5 (urgent or complete failure). This is not something you can ignore.

What Are the Repair Options for a Collapsed Drain?

A collapsed drain cannot be fixed with a simple patch repair. Your options are:

Option 1: Excavation and Replacement (Standard Solution)

For most collapsed drains, excavation and full replacement is necessary. The contractor:

1. Excavates along the collapsed section (typically 1–2 metres longer than the visible collapse, to ensure the surrounding pipe is also adequate).
2. Removes the old pipe.
3. Installs new PVC pipe with proper bedding in sand.
4. Compacts and tests the new section.
5. Makes good the ground surface.

Cost: £2,000–£8,000 depending on:

• Depth. Shallow drains (0.5–1m deep) are easier and cheaper than deep drains (1.5–2m+).
• Location. A drain that runs under a driveway requires removal and reinstatement of the surface (£500–£1,500 extra). A drain under a patio costs more to reinstate than one in open garden.
• Extent of collapse. A short 1-metre section is cheaper than a 5-metre collapsed run.
• Ground conditions. Soft ground, clay, or waterlogged ground makes excavation harder and more expensive.

Advantages:

• Completely solves the problem.
• Modern PVC pipe is durable and will last 50+ years.
• No future worries about that section.

Disadvantages:

• Disruptive if the collapse is under a patio or driveway.
• Time-consuming (typically 2–5 days for the excavation and reinstatement).
• Expensive upfront.

Option 2: Sectional Re-Lining (CIPP)

In some cases, re-lining can be used to stabilise a partial collapse and seal the pipe. The epoxy-impregnated liner is inverted into the damaged pipe and cured, creating a new internal pipe.

Limitations:

• Cannot be used if the collapse is complete (the liner cannot be inserted through a complete blockage).
• Works best for partial collapses where some passage remains.
• The collapsed section must be accessible from a manhole.

Cost: £1,500–£3,500 (cheaper than excavation for a straightforward case).

Advantages:

• Non-invasive — no excavation.
• Quicker than full replacement.
• Seals the damaged pipe.

Disadvantages:

• Only works for partial collapse.
• Slightly reduces internal diameter (usually not a practical issue).

Option 3: Patch Repair (Not Usually Viable)

For a collapsed section, a simple patch is not a solution. The entire section needs to be addressed. Patching over a collapse is like putting a band-aid on a broken bone — it does not work.

Should You Get Emergency or Planned Collapse Repair?

Emergency Collapse (Sewage Backing Up)

If sewage is backing up into your property, this is a health and safety emergency. You need to:

1. Contact a drainage contractor immediately and request emergency attendance (many operate 24/7 for emergencies).
2. Request an emergency repair or temporary solution (the contractor may be able to bypass the collapse with temporary pipes).
3. Expect to pay a premium for emergency call-out (often double or triple the standard rate).
4. Have the permanent repair planned for the next convenient time.

Emergency repair cost: £500–£1,500 for a temporary bypass or emergency excavation. Permanent repair follows at the full cost.

Planned Collapse Repair

If the collapse is not causing immediate backup (the blockage is further from the house, and water is still draining, just slowly), you have time to plan the repair:

1. Have a survey carried out to confirm the extent and location.
2. Obtain quotes from 2–3 contractors.
3. Arrange the repair at a time convenient for you (often in summer months, to minimise disruption).
4. Budget for the repair cost (£2,000–£8,000) and plan funding.

Why Are Collapsed Drains Common in Manchester?

Drain collapse in Manchester is relatively common due to:

Age of Housing Stock

Many Manchester properties are 100–150 years old. Clay pipes from that era are brittle and prone to collapse after such a long service life.

Heavy Clay Soil

Manchester’s predominant clay soil is stable in normal conditions but can move during drought and heavy rain cycles. This movement stresses old drains.

Combined Sewers in Older Areas

Areas like Longsight, Levenshulme, Moss Side, and Ardwick have combined sewers. During heavy rain, surcharging can stress drains and contribute to collapse of weakened pipes.

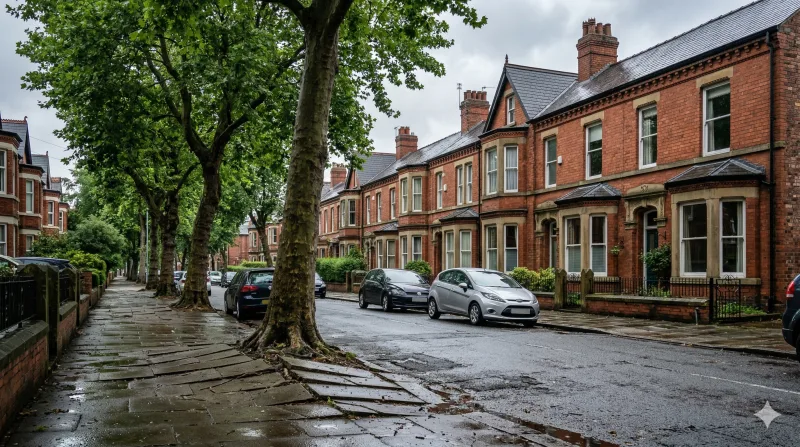

Victorian and Edwardian Housing

Properties built between 1880 and 1939 are common across Manchester. Many have original clay pipe drainage that is now over 100 years old and at end-of-life. Collapse is increasingly common in these properties.

How Can You Prevent Drain Collapse?

Preventing collapse is difficult with very old drains, but you can reduce risk:

• Regular surveys — every 5–10 years for older properties identifies developing problems before collapse occurs.
• Avoid heavy loading over drains — if you are planning a patio or extension, know where your drains run and avoid building directly over them.
• Maintain proper grades and flow — ensure water flows freely and does not back up.
• Address developing problems early — if a survey shows a crack or deformation, fixing it before it collapses is far cheaper than dealing with a collapse.

What Should You Do If You Suspect a Collapsed Drain?

A collapsed drain is serious and requires excavation and replacement in most cases. However, detecting it early via a drain survey and planning a proper repair is far less expensive and disruptive than dealing with an emergency backup.

If you suspect a collapse (recurring blockages, slow drainage, damp in the garden), do not delay. A CCTV drain survey will confirm the situation and allow you to plan repairs.

If you believe you may have a collapsed drain in Manchester, or you want to survey an older property to check for developing collapse risk, get in touch. We can survey, diagnose, and connect you with contractors to discuss repair options.
